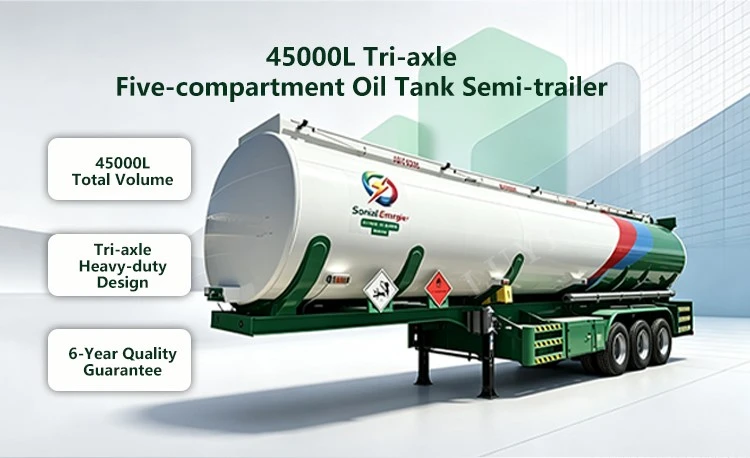

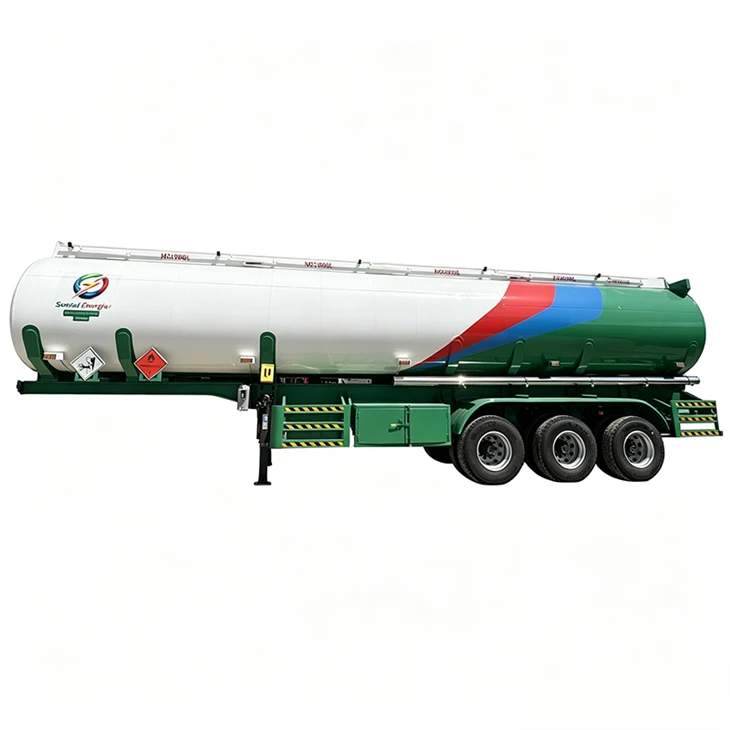

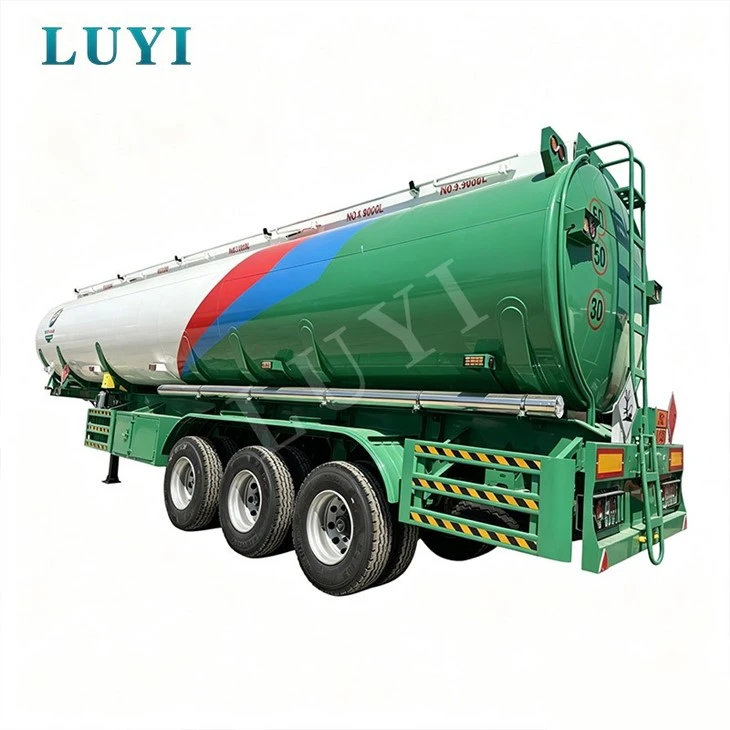

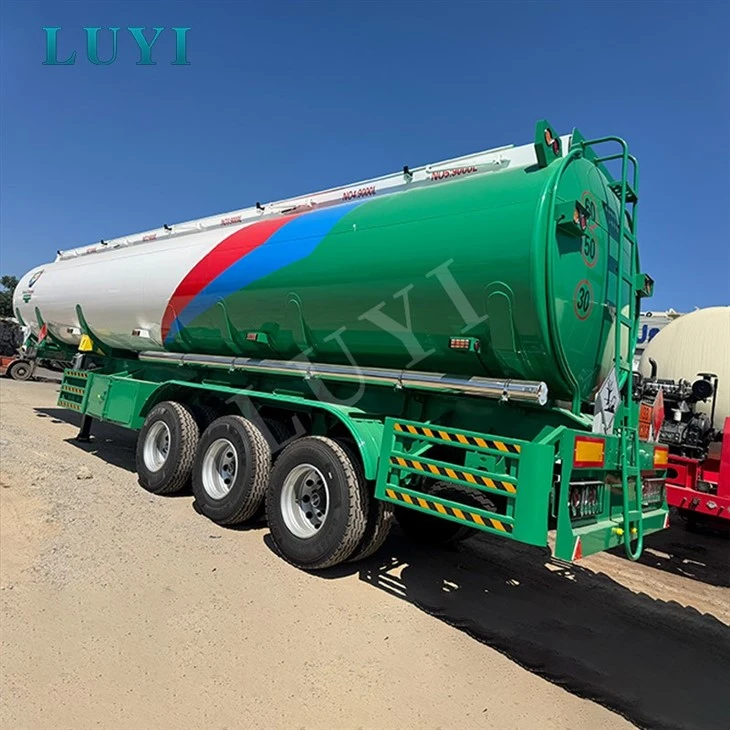

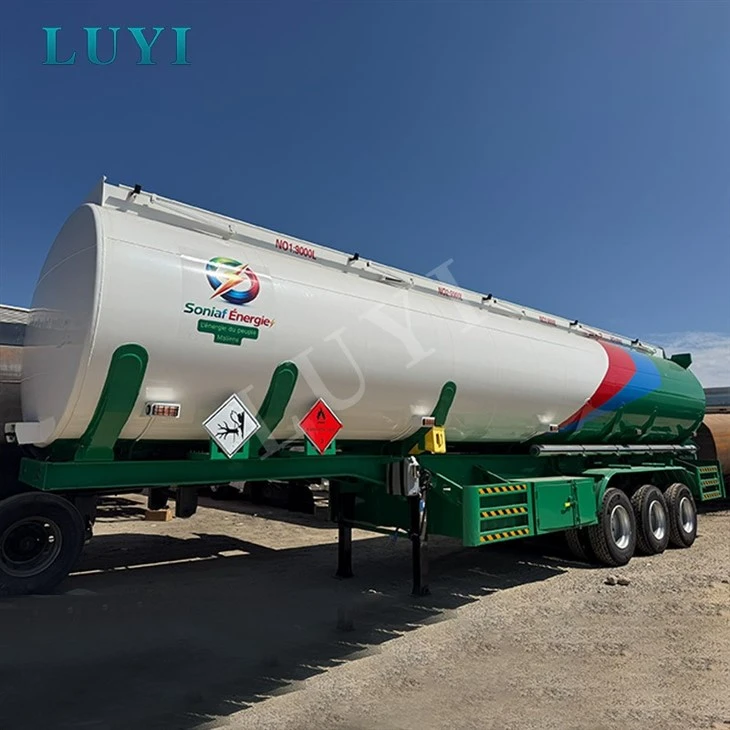

3 Axle 5 Compartment 45000L Fuel Tank Semi Trailer For Liquid Transport

LUYI AUTO 3 axle 45000L fuel tank semi trailer is designed for safe bulk liquid transport. Built with 5 independent compartments, it enables hauling different liquids in one trip to save logistics costs. Internal anti-wave baffles reduce liquid sloshing for safer driving. The tank uses Q345R steel or optional stainless steel, fully welded and leakage tested. It is equipped with 13T axles, WABCO brake system, ABS, static conductive coating and API bottom valves. Custom layouts and colors are supported. Certified with ISO & CE, this tanker suits diesel, petrol and edible oil, widely used in Middle East, Africa and Southeast Asia markets.

Product parameters

The tank body is made of Q235B carbon steel. Single‑compartment structure as standard, extra compartments can be added.

Axle options: FC / FUWA / BPW / SAF

Leaf spring specification: 90×13, 10 pieces; Equipped with 6 double air chambers.

Tire size: 12R22.5; Optional brands: Triangle / Linglong.

Fitted with 28‑ton landing legs and modular 90# kingpin.

Original factory standard 4S/2M ABS braking system.

Supplied with 2 carbon‑steel nine‑claw manhole covers and 2 breather valves.

4‑inch aluminum alloy ball valve discharge outlet on each side of the rear end; external 500 mm valve cabinet. One piece of 4‑inch aluminum alloy bottom discharge valve and two pieces of 4‑inch flexible hoses (5.5 m length) are provided.

Equipped with curved aluminum alloy mudguards, aluminum alloy toolbox, stainless‑steel hose box, 1 spare‑tire carrier, 1 rear access ladder, and 2 pcs of 50L aluminum air reservoirs.

Serve wholeheartedly

Customize a solution exclusive to you according to your needs

why choose our products

LUYI AUTO fuel tank semi trailers prioritize safety and durability. Our tank body adopts full penetration welding and strict leakage test, with anti-wave baffles inside each compartment to control liquid surge. We use reliable branded brake components and static conductive coating to eliminate fire risks during fuel delivery.

We support flexible customization for compartment size, fittings and paint color. Every trailer is ISO & CE certified to meet overseas market standards. We offer stable spare parts supply and professional after-sales service. With rich experience serving Africa, Middle East and Southeast Asia clients, we provide cost-effective heavy-duty liquid transport solutions.

Brand Guarantee

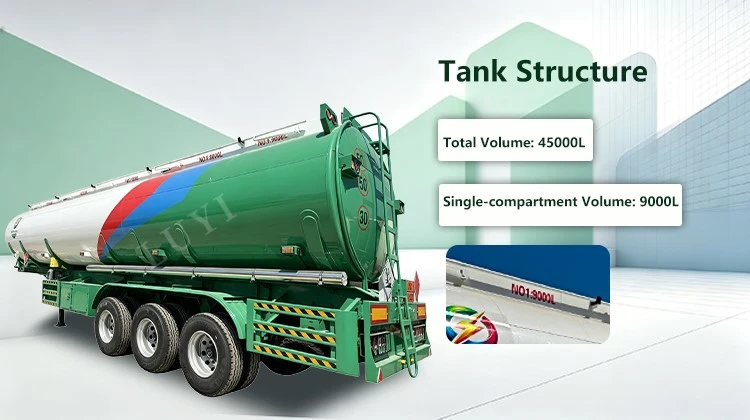

Multi-compartment Design for Flexible Cargo

5 independent compartments with anti-wave baffles. It can carry different liquids in one shipment, reduce liquid sloshing during transit and improve driving safety. Total capacity reaches 45000L.

Reliable Tank Structure & Material

Tank available in Q345R carbon steel or optional stainless steel. Full penetration welding and strict leakage test ensure no leak for long-term heavy load.
